Multi Unit Single Piece Basal Implants

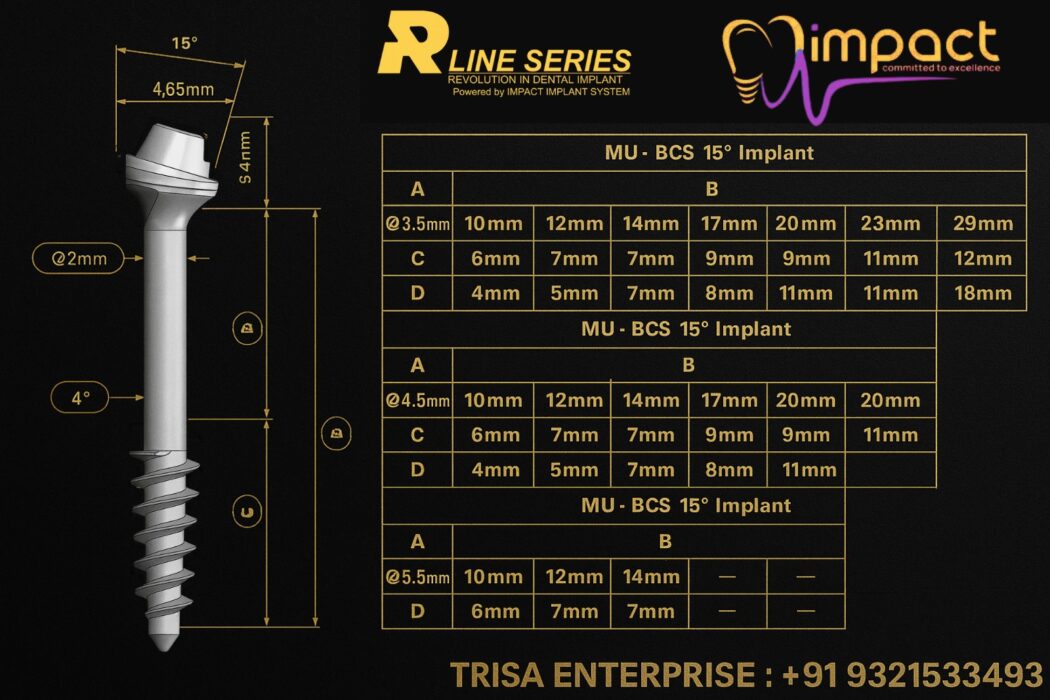

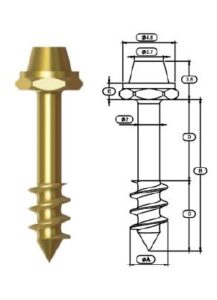

| MU - BCS - Dia 3.5mm (External Hex Height 1.5mm) | ||||
|---|---|---|---|---|
| A | B | C | D | E |
| 3.5 mm | 10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm 32.0 mm | 6.5 mm 9.5 mm | 3.5 mm 5.5 mm 7.5 mm 10.5 mm 10.5 mm 13.5 mm 16.5 mm 19.5 mm 22.5 mm | 1.5 mm |

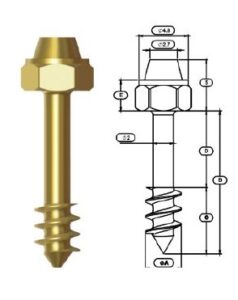

| MU - BCS - Dia 3.5mm (External Hex Height 3.0mm) | ||||
|---|---|---|---|---|
| A | B | C | D | E |
| 3.5 mm | 10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm 32.0 mm | 6.5 mm 9.5 mm | 3.5 mm 5.5 mm 7.5 mm 10.5 mm 10.5 mm 13.5 mm 16.5 mm 19.5 mm 22.5 mm | 3.0 mm |

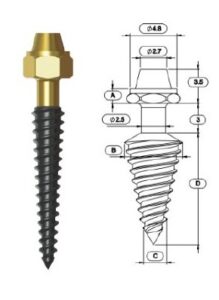

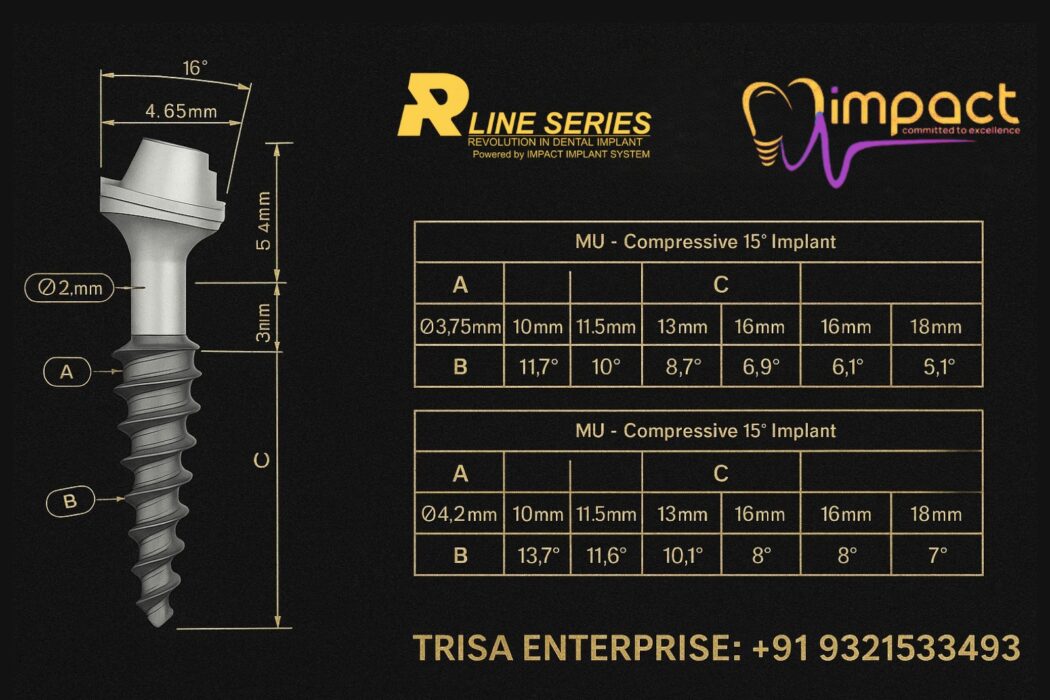

MU – Compressive
| MU - Compressive(External Hex Height 1.5mm) | |||||
|---|---|---|---|---|---|
| A | 1.5 mm | ||||
| B | 3.3 mm | 3.75 mm | 4.2 mm | 5.0 mm | 6.0 mm |
| C | 2.0 mm | 2.0 mm | 2.2 mm | 2.4 mm | 2.50 mm |
| D | 11.5 mm 13 mm 16 mm - - - | 10 mm 11.5 mm 13 mm 16 mm 18 mm - | 8 mm 10 mm 11.5 mm 13 mm 16 mm 18 mm | 8 mm 10 mm 11.5 mm 13 mm 16 mm - | 6 mm 8 mm 10 mm 11.5 mm 13 mm 16 mm |

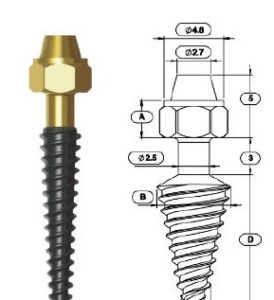

| MU - Compressive(External Hex Height 3.0mm) | |||||
|---|---|---|---|---|---|
| A | 1.5 mm | ||||
| B | 3.3 mm | 3.75 mm | 4.2 mm | 5.0 mm | 6.0 mm |
| C | 2.0 mm | 2.0 mm | 2.2 mm | 2.4 mm | 2.50 mm |
| D | 11.5 mm 13 mm 16 mm - - - | 10 mm 11.5 mm 13 mm 16 mm 18 mm - | 8 mm 10 mm 11.5 mm 13 mm 16 mm 18 mm | 8 mm 10 mm 11.5 mm 13 mm 16 mm - | 6 mm 8 mm 10 mm 11.5 mm 13 mm 16 mm |
